Khoom Description

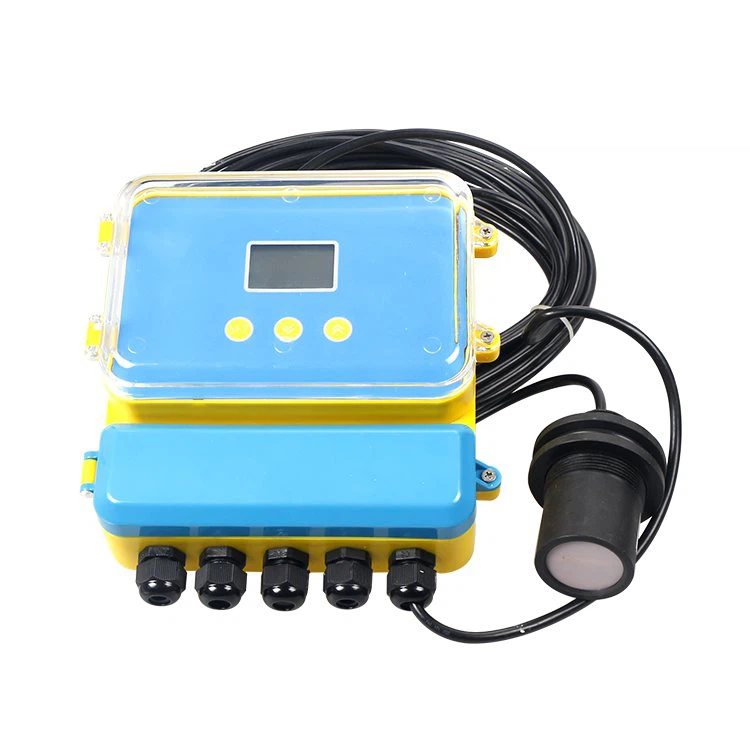

UL40 yog ib qho uas tsis yog -hu rau ultrasonic qib sensor nrog kev sojntsuam cais thiab cov zaub. Qhov no tsis yog -hu rau ultrasonic hom qib transmitter txais yuav cov kev txiav-ntug thev naus laus zis suav nrog SMD Cheebtsam thiab ASIC thev naus laus zis, thiab siv thoob plaws kev lag luam rau qhov tseeb thiab txhim khu kev tshuaj xyuas ntawm cov kua dej yam tsis muaj kev sib cuag ncaj qha nrog cov tshuaj raug ntsuas. Txoj kev tshiab no siv ultrasonic nthwv dej los txiav txim qhov kev ncua deb ntawm lub sensor thiab saum npoo ntawm cov kua, muab kev ntsuas raug txawm tias nyob rau hauv ib puag ncig nyuaj.
Cov thev naus laus zis no pom dav -ntau cov ntawv thov hauv kev saib xyuas qib tank, qhib kev ntsuas dej ntws, kev kho dej khib nyiab, thiab kev tswj dej thiab kav dej. Nws versatility thiab kev ua tau zoo ua rau nws indispensable los xyuas kom meej cov hauj lwm zoo thiab kev tswj raws li nyob rau hauv ntau yam sectors.
Tsis yog-kev tiv thaiv qib ntsuas ultrasonic muaj ntau yam txiaj ntsig, suav nrog kev yooj yim ntawm kev teeb tsa, kev saib xyuas me me, thiab kev sib raug zoo nrog ntau yam khoom. Nrog nws lub peev xwm los muab cov ntaub ntawv tiag tiag - sijhawm thiab kev saib xyuas thaj chaw deb, cov lag luam tuaj yeem txhim kho lawv cov txheej txheem, txo cov nqi, thiab txhim kho tag nrho cov khoom tsim tau thaum ua kom muaj kev ruaj ntseg ib puag ncig.
Khoom nta
- Tsis siv neeg kub them nyiaj
- Boasting lub kaum sab xis tsim hauv qab 9℃thiab lub sijhawm teb tsawg dua 200ms
- NLEPE cov khoom siv hluavtaws vaj tsev nrog IP66 ntsuas rau kev ua haujlwm ntev
- Nruab nrog siab - zoo davhlau ya nyob twg thaiv kom muaj zog tiv thaiv -jamming muaj peev xwm thiab ntev - lub sij hawm stability
- Split probe thiab 'meter' tsim nrog dav ntsuas ntau txog 70m
Khoom Specification
| Ntau yam | 5m,10m,15m,20m,30m,40m,50m,60m,70m |
| Qhov tseeb | 0.25%-0.5% |
| Analog tso zis | 4-20mA / 510Ω load |
| Relay tso zis | Ob pab pawg rau ib qho channel Plaub pab pawg rau ob chav channel AC 250V / 8A lossis DC 30V / 5A Cov xwm txheej tuaj yeem ua tau |
| Fais fab mov | Txuj: 220V AC +15% 50Hz Yeem: 24VDC lossis 120mA Customized: 12VDC lossis roj teeb |
Ib puag ncig Kub | LED: -20-+60 degree, Kev sojntsuam: 20-+80 degree |
| Kev sib txuas lus | Kev xaiv: 485,232 Kev Sib Txuas Lus (kev cog lus tsim khoom) |
| Qib tiv thaiv | LED: IP65, Kev soj ntsuam: IP68 |
| Cable sojntsuam | txheem: 10m; 100 mmax |
Khoom Dimensions
Cim npe nrov: Tsis tiv tauj hom ntsuas, Tuam Tshoj tsis tiv tauj hom ntsuas ntsuas manufacturers, lwm tus neeg
Khoom nta
- Tsis siv neeg kub them nyiaj
- Boasting lub kaum sab xis tsim hauv qab 9℃thiab lub sijhawm teb tsawg dua 200ms
- NLEPE cov khoom siv hluavtaws vaj tsev nrog IP66 ntsuas rau kev ua haujlwm ntev
- Nruab nrog siab - zoo davhlau ya nyob twg thaiv kom muaj zog tiv thaiv -jamming muaj peev xwm thiab ntev - lub sij hawm stability
- Split probe thiab 'meter' tsim nrog dav ntsuas ntau txog 70m
Khoom Dimensions
Khoom Specification
|
Ntau yam |
5m,10m,15m,20m,30m,40m,50m,60m,70m |
|
Qhov tseeb |
0.25%-0.5% |
|
Analog tso zis |
4-20mA / 510Ω load |
|
Relay tso zis |
Ob pab pawg rau ib qho channel Plaub pab pawg rau ob chav channel AC 250V / 8A lossis DC 30V / 5A Cov xwm txheej tuaj yeem ua tau |
|
Fais fab mov |
Txuj: 220V AC +15% 50Hz Yeem: 24VDC lossis 120mA Customized: 12VDC lossis roj teeb |
|
Ib puag ncig Kub |
LED: -20-+60 degree, Kev sojntsuam: 20-+80 degree |
|
Kev sib txuas lus |
Kev xaiv: 485,232 Kev Sib Txuas Lus (kev cog lus tsim khoom) |
|
Qib tiv thaiv |
LED: IP65, Kev soj ntsuam: IP68 |
|
Cable sojntsuam |
txheem: 10m; 100 mmax |
