Khoom Description

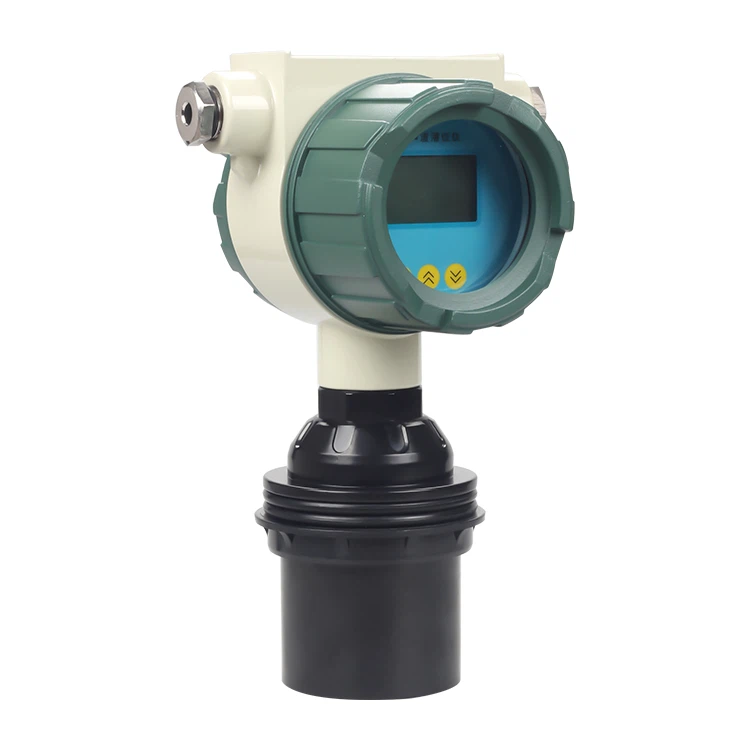

UL30 ultrasonic qib sensor, featuring explosion-proof feature thiab ib lub zos zaub, enables on-site saib ntawm kev ntsuas nrog yooj yim toggling ntawm theem thiab nyob deb hom nyob rau hauv lub sij hawm tawg. Nrog rau qhov ntse ntsuas kub them nqi hluav taws xob, lub ntsuas hluav taws xob ua kom muaj kev ntsuas ruaj khov nyob rau hauv qhov kub thiab txias li ntawm -20 ~ 60 degree . Muaj kev ruaj ntseg teeb liab kis tau tus mob, daim duab echo, thiab cov yam ntxwv kuaj mob rau kev soj ntsuam ceev ntawm qhov tsis txaus ntseeg, muab cov kev daws teeb meem zoo rau cov ntawv thov hauv ntiaj teb tiag tiag thaum txuag lub sijhawm thiab kev siv zog.
Khoom nta
- Integrated explosion-proof vaj tse rau explosive zaus.
- Kev soj ntsuam nrawm thiab saib xyuas los ntawm ib qho chaw hauv zos rau kev saib ntawm qhov chaw ntawm qhov ntsuas ntsuas.
- Versatility nrog seamless hloov ntawm cov kua theem thiab nyob deb hom.
- Tsis muaj kev cuam tshuam los ntawm qhov ntsuas kub hloov pauv, cov teeb liab ruaj khov kis tau tus mob thiab echo daim duab qhia.
Khoom Specification
|
Ntau yam |
5m,10m,15m,20m,30m,40m,50m,60m |
|
Qhov tseeb |
0.25%-0.5% |
|
Zaub |
Suav thiab Askiv LED |
|
Analog tso zis |
Plaub-xaim 4-20mA/510Ωload Ob-hlau 4-20mA/250Ω load |
|
Relay tso zis |
Ob pawg: AC 250V / 8A lossis DC 30V / 5A Cov xwm txheej tuaj yeem ua tau |
|
Fais fab mov |
Txheem: 24VDC Yeem: 220V AC +15% 50Hz |
|
Ib puag ncig Kub |
LED: -20-+60 degree Kev sojntsuam: 20-+80 degree |
|
Kev sib txuas lus |
Kev xaiv: 485,232 Kev Sib Txuas Lus (kev cog lus tsim khoom) |
|
Qib tiv thaiv |
LED: IP65; Kev soj ntsuam: IP68 |
Khoom Dimensions
Cim npe nrov: Tuam Tshoj tawg pov thawj ultrasonic qib sensor, Tuam Tshoj tawg pov thawj ultrasonic qib sensor manufacturers, lwm tus neeg
Khoom nta
- Integrated explosion-proof vaj tse rau explosive zaus.
- Kev soj ntsuam nrawm thiab saib xyuas los ntawm ib qho chaw hauv zos rau kev saib ntawm qhov chaw ntawm qhov ntsuas ntsuas.
- Versatility nrog seamless hloov ntawm cov kua theem thiab nyob deb hom.
- Tsis muaj kev cuam tshuam los ntawm qhov ntsuas kub hloov pauv, cov teeb liab ruaj khov kis tau tus mob thiab echo daim duab qhia.
Khoom Dimensions
Khoom Specification
|
Ntau yam |
5m,10m,15m,20m,30m,40m,50m,60m |
|
Qhov tseeb |
0.25%-0.5% |
|
Zaub |
Suav thiab Askiv LED |
|
Analog tso zis |
Plaub-xaim 4-20mA/510Ωload Ob-hlau 4-20mA/250Ω load |
|
Relay tso zis |
Ob pawg: AC 250V / 8A lossis DC 30V / 5A Cov xwm txheej tuaj yeem ua tau |
|
Fais fab mov |
Txheem: 24VDC Yeem: 220V AC +15% 50Hz |
|
Ib puag ncig Kub |
LED: -20-+60 degree Kev sojntsuam: 20-+80 degree |
|
Kev sib txuas lus |
Kev xaiv: 485,232 Kev Sib Txuas Lus (kev cog lus tsim khoom) |
|
Qib tiv thaiv |
LED: IP65; Kev soj ntsuam: IP68 |
