Khoom Description

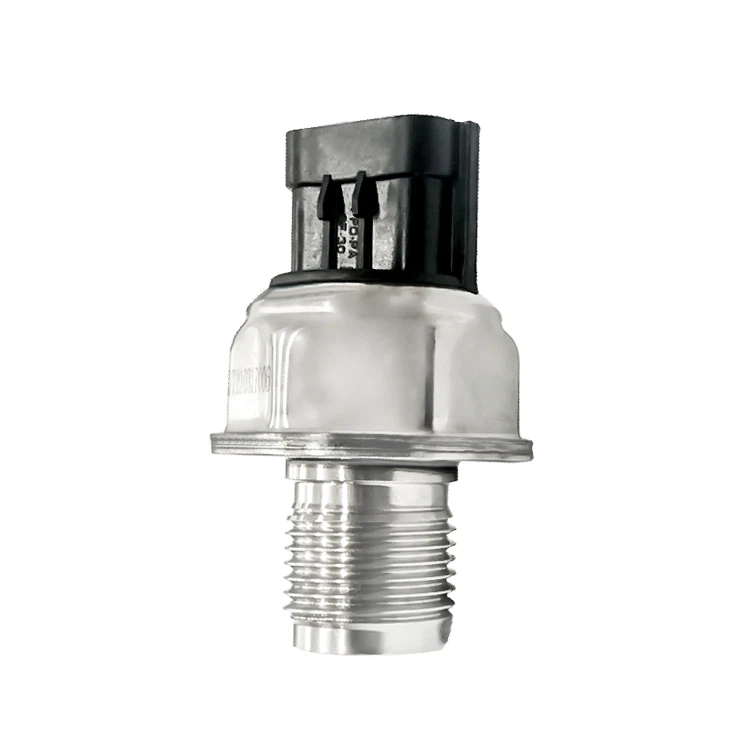

PF611, 612, 613 rail siab sensors feature ib tug txhim khu kev qha hlau-raws li lub siab-rhiab nti rau meej ntsuas nyob rau hauv ib puag ncig nyuaj. Nrog rau kev sib xyaw ua ke tag nrho-welded stainless hlau qauv thiab sputtering zaj duab xis thev naus laus zis, cov sensors pom zoo rau lub sijhawm ntev, qhov kub thiab txias, thiab qhov tseeb siab. Tus IP65- ntsuas hluav taws xob txuas thiab cov qauv hauv nruab nrog txhim khu kev ua haujlwm. Muab ntsia rau ntawm cov kab tsheb ciav hlau, lawv tau txiav txim siab txog lub sijhawm ntawm cov roj siab, hloov nws mus rau cov teeb liab voltage rau ECU kis. Qhov no ua rau muaj kev ruaj ntseg ntawm kev txhaj tshuaj precision thiab lub sij hawm nyob rau hauv cov kab kev tsheb ciav hlau, kom ntseeg tau tias cov roj txhaj tshuaj tau zoo thiab meej.
Khoom nta
- Cov neeg siab siab txog li 0.5%FS rau kev ntsuas kev tsheb ciav hlau meej.
- Nrog rau ntau yam thiab siab tsis kam, nws ua kom durability thiab adaptability nyob rau hauv ntau qhov chaw.
- Kev ruaj ntseg ntev ntev ±0.2%FS/xyoo, muaj kev ntseeg siab, thiab lub sijhawm teb ceev rau kev ua haujlwm tau zoo.
- Tsim los ntawm 17-4PH stainless hlau, muab kev tiv thaiv corrosion rau lub sijhawm ntev.
- Tsis tshua muaj kub drift nyob rau hauv ib tug dav kub ntau yam ntawm -40~140 degree
Khoom Specification
|
Kev ntsuas ntau (MPa) |
0 ~ 200MPa |
|
Qhov tseeb |
0.5%F.S, 1%F.S |
|
Kev ruaj ntseg ntev |
±0.2%FS/xyoo |
|
Zero point drift |
±0.1%FS/10 degree los yog kho |
|
Full scale kub drift |
±0.3%FS/10 degree los yog kho |
|
Durability |
107lub voj voog siab |
|
Kev nyab xeeb siab |
250 MPa |
|
Nruam siab |
300 MPa |
|
Cov khoom siv hluav taws xob |
5VDC ± 0.25VDC |
|
Rwb thaiv tsev tsis kam |
Ntau tshaj lossis sib npaug rau 1000MΩ / 500VDC |
|
Tso zis |
20%-84%Vpwr |
|
Load tsis kam |
200KΩ (Pull-up resistors) |
|
Cov khoom siv rhiab heev |
17-4PH |
|
Kev sib txuas siab |
M18X1.5 (los yog customized) |
|
Kev sib txuas hluav taws xob |
AMP connector, BOSCH connector, MLK connector |
|
Chav kawm tiv thaiv |
IP65 |
|
Kev khiav hauj lwm qhov kub thiab txias |
-40 ~ 140 degree |
Khoom Dimensions
