Khoom Description

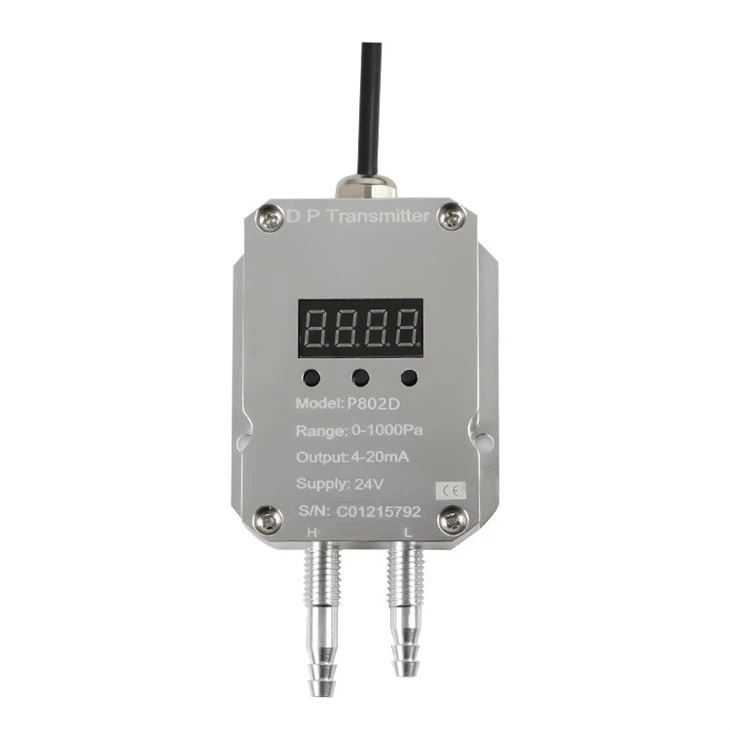

DP802 / DP802D yog ib qho kev txhim khu kev qha thiab muaj tseeb sib txawv siab transmitter crafted rau kev lag luam. Boasting imported chip technology thiab cov txheej txheem siab heev, nws ua kom muaj kev ua tau zoo tshaj plaws nrog cov kab hluav taws xob zoo tshaj plaws thiab cov nyiaj kub kub. Qhov no compact thiab lub teeb yuag transmitter suits ntau yam qhuav thiab tsis-corrosive gas ntsuas. Nws yog ib qho yooj yim rau nruab nrog M4 ntsia hlau mounting qhov ntawm ob sab thiab threaded cua nozzle, muab yooj rau cov neeg siv kom ruaj ntseg nrog screws los yog M10 × 1.5 ceev.
Khoom nta
- Qhov tseeb txog tsawg dua lossis sib npaug rau ±0.5%FS
- Advanced digital kub them nyiaj thev naus laus zis, tsis cuam tshuam los ntawm qhov hloov pauv kub.
- Imported nti, sib sau ua ke nrog cov cuab yeej siv thev naus laus zis
- Muaj zog tiv thaiv cov av noo thiab dej-tiv taus, haum rau cov kev sib tw ib puag ncig uas tiv thaiv kom ya raws yog qhov tseem ceeb.
- Compact Size thiab yooj yim installation
Khoom Specification
|
Qauv Parameter |
DP802 (tsis muaj zaub) DP802D (Nrog cov zaub) |
||||
|
Qhov tseeb |
Tsawg dua lossis sib npaug rau ±{0}}.25%FS (los ntawm kev kho); Tsawg dua los yog sib npaug rau ± 0.5% FS (Hom); |
||||
|
Siab Ntau |
0-100Pa...200KPa max lossis ±100Pa...200KPa |
||||
|
Ua haujlwm Temp. |
-10 degree ~ 80 degree ntawm 25 degree |
||||
|
Temp. nyiaj pab |
-10 degree ~ 80 degree |
||||
|
Nruab nrab tau tshaj |
Qhuav thiab tsis-corrosive gases |
||||
|
Hluav taws xob hlau |
2 Hlau |
3 Hlau |
4 cev |
||
|
Tso zis |
4 ~ 20mA |
0~5V |
0~10 V |
0.5-4.5V |
RS485 MODBUS Cov |
|
Fais fab mov |
8-30V nrog potentiometer; 24-30V tsis muaj potentiometer |
5vdc ua |
8-30V nrog potentiometer; 24-30V tsis muaj potentiometer |
||
|
Kev sib txuas hluav taws xob |
Kho qhov hluav taws xob cable |
||||
|
Kev sib txuas siab |
Φ8 chaw nres nkoj roj, Φ6 roj chaw nres nkoj, ceev connector yeem |
||||
|
Kev ntsuas IP |
IP65 |
||||
Khoom Dimensions
Cim npe nrov: Tuam Tshoj muaj cua sib txawv siab sensor manufacturers, lwm tus neeg
Khoom nta
- Qhov tseeb txog tsawg dua lossis sib npaug rau ±0.5%FS
- Advanced digital kub them nyiaj thev naus laus zis, tsis cuam tshuam los ntawm qhov hloov pauv kub.
- Imported nti, sib sau ua ke nrog cov cuab yeej siv thev naus laus zis
- Muaj zog tiv thaiv cov av noo thiab dej-tiv taus, haum rau cov kev sib tw ib puag ncig uas tiv thaiv kom ya raws yog qhov tseem ceeb.
- Compact Size thiab yooj yim installation
Khoom Dimensions
Khoom Specification
|
Qauv Parameter |
DP802 (tsis muaj zaub) DP802D (Nrog cov zaub) |
||||
|
Qhov tseeb |
Tsawg dua lossis sib npaug rau ±{0}}.25%FS (los ntawm kev kho); Tsawg dua los yog sib npaug rau ± 0.5% FS (Hom); |
||||
|
Siab Ntau |
0-100Pa...200KPa max lossis ±100Pa...200KPa |
||||
|
Ua haujlwm Temp. |
-10 degree ~ 80 degree ntawm 25 degree |
||||
|
Temp. nyiaj pab |
-10 degree ~ 80 degree |
||||
|
Nruab nrab tau tshaj |
Qhuav thiab tsis-corrosive gases |
||||
|
Hluav taws xob hlau |
2 Hlau |
3 Hlau |
4 cev |
||
|
Tso zis |
4 ~ 20mA |
0~5V |
0~10 V |
0.5-4.5V |
RS485 MODBUS Cov |
|
Fais fab mov |
8-30V nrog potentiometer; 24-30V tsis muaj potentiometer |
5vdc ua |
8-30V nrog potentiometer; 24-30V tsis muaj potentiometer |
||
|
Kev sib txuas hluav taws xob |
Kho qhov hluav taws xob cable |
||||
|
Kev sib txuas siab |
Φ8 chaw nres nkoj roj, Φ6 roj chaw nres nkoj, ceev connector yeem |
||||
|
Kev ntsuas IP |
IP65 |
||||
