Khoom Description

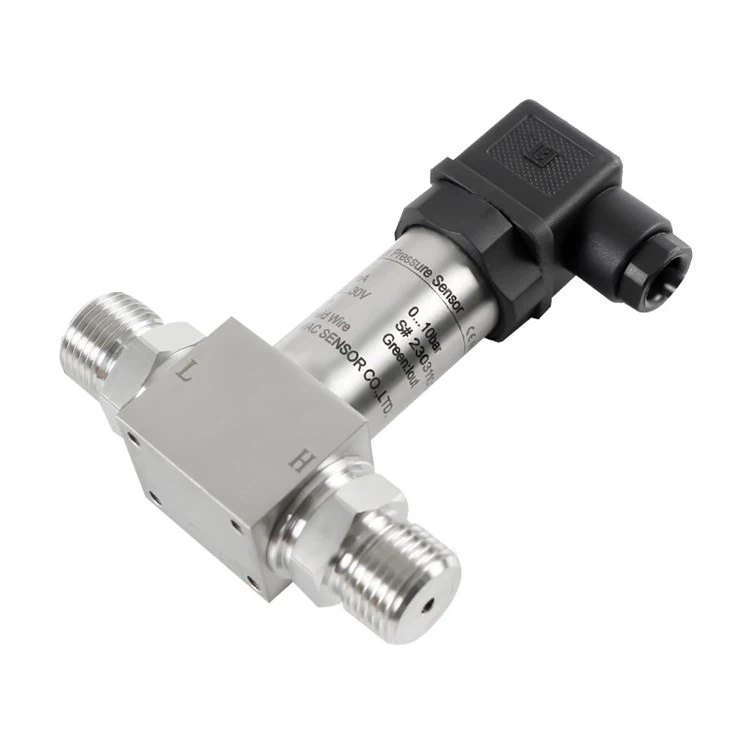

P803 Series DP transmitter yog cov khoom siv txhim khu kev qha thiab raug tsim los ntawm cov khoom siv zoo 316L stainless hlau, nws muaj cov khoom siv hluav taws xob zoo siab silicon siab sensor, lub siab ua haujlwm siab, thiab V / I hloov pauv hloov hluav taws xob. Nws yog tsim los tiv taus high voltage, siab tam sim no, siab magnetic teb, polar lead, thiab lwm yam. Lub siab sensor no siv lub piezoresistive sib txawv siab nti raws li nws lub ntsiab lus, muab siab precision thiab stability. Cov khoom no muaj ntau daim ntawv thov thiab yog qhov zoo tagnrho rau kev ntsuas kua thiab roj, ntsuas dej, roj, thiab cov kua dej me me.
Khoom nta
- Kev ntseeg siab, ruaj khov, thiab raug hauv DP ntsuas
- Kev siv ntau yam hauv cov kua, roj ntsuas ntsuas, dej, roj, thiab cov kua dej me me
- Tsim los ntawm 316L stainless hlau rau durability
- Imported high-precision silicon siab sensor
- Kev tsim tshwj xeeb rau kev tiv thaiv high voltage, siab tam sim no, siab magnetic teb, polar lead, thiab lwm yam kev nyuaj
Khoom Specification
|
Siab Ntau |
10 ~ 50KPa |
51-100 KPa |
101-200 KPa |
201-500KPa |
501-1000KPa |
1 ~ 20Bar |
|||
|
High chaw nres nkoj overload |
50…500 kPa |
500…1000 kPa |
10… 20 Ib |
20…40 Ib |
40...50 Ib |
10… 105 Ib |
|||
|
Tsawg chaw nres nkoj overload |
30… 150 kPa |
150…300 kPa |
300…600 kPa |
600..1000 kPa |
1.1.5 Ib |
1.5...55 Ib |
|||
|
Max Static Siab |
1…5 Ib |
5… 20 Ib |
20…40 Ib |
40...50 Ib |
50 Bar |
50…100 Ib |
|||
|
Qhov tseeb |
Tsawg dua lossis sib npaug rau ±0.25%FS (los ntawm kev kho); Tsawg dua los yog sib npaug rau ±0.5%FS (Hom); Tsawg dua lossis sib npaug rau ± 1.0%FS Optional |
||||||||
|
Kev ruaj ntseg |
Txuj: {{0}}.1%FS, Max: 0.2%FS |
||||||||
|
Nruab nrab Temp. |
-20 degree ~ 85 degree / 125 degree (nrog rau cov cuab yeej txias) |
||||||||
|
Temp. Kev them nyiaj yug |
{{0}} degree ~ 50 degree lossis 0 degree ~ 80 degree lossis los ntawm kev kho |
||||||||
|
Nruab nrab tau tshaj |
Tau tshaj 316 Stainless Hlau |
||||||||
|
Electronic Hlau |
2 Hlau |
3 Hlau |
4 cev |
||||||
|
Tso zis |
4 ~ 20mA |
0~5V |
0~10 V |
RS485 MODBUS Cov |
|||||
|
Fais fab mov |
12-36 Vdc (Tswj: 24V DC) |
9 ~ 36 Vdc (Tswj: 24V DC) |
15 ~ 36VDC (Hom: 24V DC) |
10-30Vdc (Tswj: 24V DC) |
|||||
|
Kev sib txuas hluav taws xob |
Tsau cable thiab dej pov thawj IP67; Terminal Box DIN43650 IP65 |
||||||||
|
Siab txuas chaw nres nkoj |
1/4''-18NPT Poj Niam; G1/4 '' Txiv neej; G1/2 '' Txiv neej; RG=Ø8/Ø10 gas qhov ncauj yeem (los ntawm kev kho) |
||||||||
|
Dej pov thawj |
IP65 rau IP68 xaiv los ntawm tus qauv |
||||||||
Khoom Description
Cim npe nrov: Tuam Tshoj digital sib txawv siab transmitter manufacturers, lwm tus neeg
Khoom nta
- Kev ntseeg siab, ruaj khov, thiab raug hauv DP ntsuas
- Kev siv ntau yam hauv cov kua, roj ntsuas ntsuas, dej, roj, thiab cov kua dej me me
- Tsim los ntawm 316L stainless hlau rau durability
- Imported high-precision silicon siab sensor
- Kev tsim tshwj xeeb rau kev tiv thaiv high voltage, siab tam sim no, siab magnetic teb, polar lead, thiab lwm yam kev nyuaj
Khoom Dimensions
Khoom Specification
|
Siab Ntau |
10 ~ 50KPa |
51-100 KPa |
101-200 KPa |
201-500KPa |
501-1000KPa |
1 ~ 20Bar |
|||
|
High chaw nres nkoj overload |
50…500 kPa |
500…1000 kPa |
10… 20 Ib |
20…40 Ib |
40...50 Ib |
10… 105 Ib |
|||
|
Tsawg chaw nres nkoj overload |
30… 150 kPa |
150…300 kPa |
300…600 kPa |
600..1000 kPa |
1.1.5 Ib |
1.5...55 Ib |
|||
|
Max Static Siab |
1…5 Ib |
5… 20 Ib |
20…40 Ib |
40...50 Ib |
50 Bar |
50…100 Ib |
|||
|
Qhov tseeb |
Tsawg dua lossis sib npaug rau ±0.25%FS (los ntawm kev kho); Tsawg dua los yog sib npaug rau ±0.5%FS (Hom); Tsawg dua lossis sib npaug rau ± 1.0%FS Optional |
||||||||
|
Kev ruaj ntseg |
Txuj: {{0}}.1%FS, Max: 0.2%FS |
||||||||
|
Nruab nrab Temp. |
-20 degree ~ 85 degree / 125 degree (nrog rau cov cuab yeej txias) |
||||||||
|
Temp. Kev them nyiaj yug |
{{0}} degree ~ 50 degree lossis 0 degree ~ 80 degree lossis los ntawm kev kho |
||||||||
|
Nruab nrab tau tshaj |
Tau tshaj 316 Stainless Hlau |
||||||||
|
Electronic Hlau |
2 Hlau |
3 Hlau |
4 cev |
||||||
|
Tso zis |
4 ~ 20mA |
0~5V |
0~10 V |
RS485 MODBUS Cov |
|||||
|
Fais fab mov |
12-36 Vdc (Tswj: 24V DC) |
9 ~ 36 Vdc (Tswj: 24V DC) |
15 ~ 36VDC (Hom: 24V DC) |
10-30Vdc (Tswj: 24V DC) |
|||||
|
Kev sib txuas hluav taws xob |
Tsau cable thiab dej pov thawj IP67; Terminal Box DIN43650 IP65 |
||||||||
|
Siab txuas chaw nres nkoj |
1/4''-18NPT Poj Niam; G1/4 '' Txiv neej; G1/2 '' Txiv neej; RG=Ø8/Ø10 gas qhov ncauj yeem (los ntawm kev kho) |
||||||||
|
Dej pov thawj |
IP65 rau IP68 xaiv los ntawm tus qauv |
||||||||
